| ○ | 精度等級：DIN 7 | ○ | 齒面硬度：15~20HRC | |||
| ○ | 齒型：直齒 | ○ | 表面處理：研磨 | |||
| ○ | 壓力角：20° | ○ | 齒面處理：精切削 | |||
| ○ | 材質：42CrMo | ○ | 熱處理：調質熱處理 | |||
|

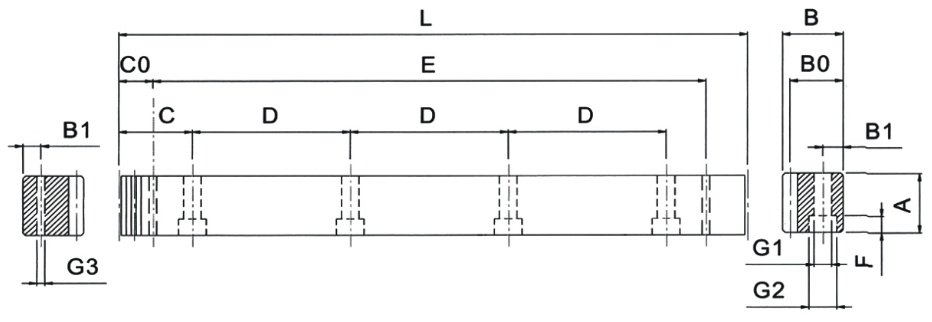

產品型號 Catalog NO. |
L |
齒數 Tooth NO . |
A | B | B0 | C | D |
孔數 Hole NO. |
B1 | G1 | G2 | F | C0 | E | G3 |
總齒距 誤差 PichError/ 300mm |
| SSGH015-050 | 499.51 | 106 | 17 | 17 | 15.5 | 62.44 | 124.88 | 4 | 7 | 6 | 9.5 | 7 | 29.0 | 441.5 | 5.7 | 0.042 |
| SSGH015-100 | 999.03 | 212 | 17 | 17 | 15.5 | 62.44 | 124.88 | 8 | 7 | 6 | 9.5 | 7 | 29.0 | 941.0 | 5.7 | 0.042 |
| SSGH020-050 | 502.64 | 80 | 24 | 24 | 22 | 62.83 | 125.66 | 4 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 | 0.044 |
| SSGH020-100 | 1005.28 | 160 | 24 | 24 | 22 | 62.83 | 125.66 | 8 | 8 | 7 | 11 | 7 | 31.3 | 942.7 | 5.7 | 0.044 |
| SSGH030-050 | 508.95 | 54 | 29 | 29 | 26 | 63.62 | 127.23 | 4 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 | 0.046 |
| SSGH030-100 | 1017.9 | 108 | 29 | 29 | 26 | 63.62 | 127.23 | 8 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 | 0.046 |
| SSGH040-050 | 502.64 | 40 | 39 | 39 | 35 | 62.83 | 125.66 | 4 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 | 0.048 |
| SSGH040-100 | 1005.28 | 80 | 39 | 39 | 35 | 62.83 | 125.66 | 8 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 | 0.048 |
| SSGH050-050 | 502.65 | 32 | 49 | 39 | 34 | 62.83 | 125.66 | 4 | 12 | 14 | 20 | 13 | 30.1 | 442.4 | 11.7 | 0.050 |
| SSGH050-100 | 1005.31 | 64 | 49 | 39 | 34 | 62.83 | 125.66 | 8 | 12 | 14 | 20 | 13 | 30.1 | 945 | 11.7 | 0.050 |
| SSGH060-050 | 508.95 | 27 | 59 | 49 | 43 | 63.62 | 127.23 | 4 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 | 0.055 |
| SSGH060-100 | 1017..9 | 54 | 59 | 49 | 43 | 63.62 | 127.23 | 8 | 16 | 18 | 26 | 17 | 31.4 | 955.0 | 15.7 | 0.055 |
| SSGH080-050 | 502.64 | 20 | 79 | 79 | 71 | 62.83 | 125.66 | 4 | 25 | 22 | 33 | 21 | 26.6 | 449.5 | 19.7 | 0.060 |
| SSGH080-100 | 1005.28 | 40 | 79 | 79 | 71 | 62.83 | 125.66 | 8 | 25 | 22 | 33 | 21 | 26.6 | 952 | 19.7 | 0.060 |
